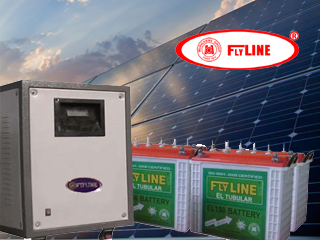

As the name suggests this system is fully standalone. With this we can have grid free power and save our hard earned money too and we get long term dividends in the years to come. The main source of power is taken from solar as well as the backed up battery. When the sun is not there, then the entire load is taken by the backup battery packs, which was charged during the day by the solar power. It can be installed in residential as well as commercial areas too. It has built in charging controller too.The list of our satisfied clients runs long and subsume prestigious institutions like karipoor air port - 7th battalion military camp,ISRO Sreeharikotta, Marine Fisheries Dept of India, Vallarpadam Container Terminal (IGTPL) etc.it is most important that the installation should be undertake by a well experienced and qualified technical expert to get 100% output of the system and avoid unnecessary expenses and for a.smooth and trouble free function of the system. The maximum solar power consumption is depending up on that you turn to an experienced technical advice.
FLYLINE STANDALONE INVERTER MORE INSTALLATION VIDEOS:-CLICK HERE
FLYLINE STANDALONE INVERTER MORE IMAGES:-CLICK HERE
FLYLINE STANDALONE INVERTER PDF:-CLICK HERE
* Pure sine wave out put. *ISO: 9001 -2015 Certified solar power conditioner. * IGBT with German PWM intelligent charging technology.* Work with solar power, the best way to save money using natural resource. * Attractive Designs. *Pollution free type. * Single Switch Operation. * Fully automatic. * IGBT based topology. * Protection from lightening, * Over Load Protection. * Over Charge and Deep Discharge cut off. * Independent Digital display inverter input and out put voltage, load, etc. * Audio and Visual Indicators. * Can connect to the existing wiring. * No husking sound. * It is a fully automatic built-in charging control or external system, No need of any manpower. * Provisions for connecting grid power. *Optional mains charger ON/OFF switch. *Back-up power support. * Option for customization of back-up power..*The Special feature of the system is when we connected to main line - if the battery is full and there is sufficient sunlight the system will automatically cut the main line off (KSEB Line) and connect the solar system. * Our built in solar charger is floating type and once it fully charges the battery, it gone to trickle charging. This will provide more battery life and can utilize 100 % efficiency of solar panel power.. *An ideal unit for day and nights power supply.
TECHNICAL FEATURES OF FLYLINE STANDALONE SOLAR POWER INVERTER | |||||||||
Sl. No. | Parameter | Single Phase Unit | Three Phase Unit | ||||||
1 | Rating | 1 KVA to 15 KVA | 6 KVA to 100 KVA | ||||||
2 | Battery Volt /KVA | 1KVA-36V | 2KVA- 48-72V | 3KVA- 72V | 5KVA- 96 -192V | 8KVA- 120V-192v | 10KVA- 192-240V | 12KVA- 192-240V | 15KVA- 240V-348v |
3 | Input Voltage Range | 190 V -270 V ac or solar dc | 375-450V ac or solar dc | ||||||
4 | Nominal Output Voltage | 220V | 415V | ||||||
5 | Output Frequency | ± 1% | ± 3% | ||||||
6 | Input Frequency | 50 Hz: ± 1% | 50 Hz: ± 1% | ||||||
7 | Power Factory | -0.8 lagging to unity | |||||||
8 | Voltage Correction Rate 1. Air Cooled 2. Oil Cooled |
Voltage Correction | 35V/Sec. | ||||||
9 | 35V/ Sec | ||||||||
10 | 35V/ Sec | 35V/ Sec | |||||||
11 | Efficiency | 90% | 90% | ||||||
12 | Control | Digital | Digital | ||||||
13 | Transformer | High Efficient | High Efficient | ||||||
14 | Noise | Low noise <50db | |||||||
15 | Heat | < 4 0 o C | |||||||
16 | Wave form | Pure sine wave | |||||||
17 | Mounting | Free on wheel | |||||||
compact in size | |||||||||
19 | Solar charger-built-in | Floating type & Trickle charging. | Floating type & Trickle charging. | ||||||
Sl. No. | Parameter | |
1 | Charge control type | Micro controller 12bit |
2 | Nominal voltage | 72 v to 180V DC |
3 | Nominal SPV power | Up to 1kw to 10kw |
4 | Self consumption | less than 4mv |
5 | Charging methods | back to back IGBT |
6 | Charging mode | PWM zero drop HF. |
7 | Display indication | LCD graphics |
8 | Cooling | air cool/forced fan |
9 | Ambient tem | 25* to 150*. |
10 | Tem compensation | +/- 5mv@40degree |
More Details Of Flyline Solar Standalone Inverter :-Click Here
Flyline Solar Panel Details And Specifications :-Click here
Flyline Solar Battery Specifications and details :-Click Here
Flyline Solar Standalone Inverter Picture : ClickFlyline Solar Standalone Inverter PDF Download : Click Here
Product Short Informative Videos:- Click here
Product Detailed Informative Videos:- Click here
Useful technical informative videos:- Click here
