MG WATER HEATER

As we know that there is depletion of natural resource world wide, we have to look for other resources to fulfill our increasing energy needs. So People started to look towards wind and solar energy. The sunlight is mostly available and it is in abundance and we get it freely too. So people started using sun energy i.e. solar energy for their daily needs. We get almost 7 hours of sunlight thought the day.

Using solar water heater we can get good amount of free hot water in a day. It emits nothing when converted into energy. It's very efficient. It uses thermal energy for providing hot water thru solar. The collector is kept normally on the roof top preferably facing south. The solar water heater is of two types 1.etc (evacuated tube collector) :- its quick heat generation, if the temperature is higher then collector effencicy is also high. It gives satisfactory performance even in extreme cold condition. The temperature ranges from 60 to120 deg. It's insulated with polyurethane insulation material, which does not absorb water or moisture. It has negligible scaling of tubes. Heat exchanger not required. The hot water is available 350 days in a year. Grouting of collectors is not required. It's easy to replace glass tubes. While the flat plate collector is slow in heat generation. FPC collector's efficiency is low on high temperature. In fpc, heat is loss in collector as well as tank. During the day time it's high due to convection. The freezing of water takes place at high altitude causing damage to collector. The temperature ranges 60 to 80. The collector and the tank are insulated with glasswool or rockwool, which absorbs moisture and gets wet during monsoon reducing the efficiency of the system. Heavy scaling of copper or aluminum tubes.

Heat exchanger is required. The hot water is available only for 300 days, It requires high maintenance.We have made a place of our own in the field of solar based power units since the installation from 2000 and have done thousands of solar power unit installations in many places including Agricultural University in Malapuram, Government of Kerala,CISF 7th battalion military campin Karipoor Airport, ISRO Sreeharikotta, Marine Fisheries Dept of India, Vallarpadam Container Terminal (IGTPL) etc.it is essential that the installation should be undertake by a well experienced technical person to get 100% out put of the system and avoid unnecessary expenses and for a smooth and trouble free operation. The maximum utilization of solar power consumption is depending up on a thorough follow up of an experienced technical advice.

MG SOLAR WATER HEATER INFORMATIVE & INSTALLATION VIDEOS






MG SOLAR WATER HEATER MORE INSTALLATION VIDEOS:-CLICK HERE

MG FPC SOLAR WATER HEATER PDF:-CLICK HERE

MG ETC SOLAR WATER HEATER PDF:-CLICK HERE


MG WATER HEATER FEATURES

* Maintenance free. * Water heated up to 80�C. * No electrical hazard. * No expenses after installation. * The best way of getting natural hot water for cooking and industrial purpose * Copper capillaries. * P U F system and glass wool to avoid conduction loss for storage tank. * Light weight. * T I G welded fins and tubes. * Compact in size. * Heat expulsion. * Fully automatic. * High quality tempered 4mm thick front glass. * Sturdy and weather proof design. * Different Capacity starting from 125 liters to 1000 liters. * Custom built Solar Water Heater can also be provided. * Two models FPC and ETC. * In FPC special model we can connect pressure pump.

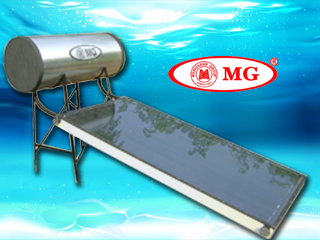

MG solar water heater FPC model 125 150 200 250 500 1000 3000
Usage No. of person 30 ltr Per Person
Installation Area(sq. mt) 4 4 8 8 16 32 96
Water output temp. (° C) 85 ± 5 °C under normal Sunny conditions
Solar Flat Plate Collector Details
FPC Capillary Tube Model : No. fins 9/Panel
Collector Material Copper
Collector box Coating Extruded Aluminum Powder Coated
Collector Size 2050 mm x 1050 mm x100 mm per Panel
Insulation High Density rock wool/puf insulation
Beading Beading & Grommet - E P D M
Reflector Aluminum foil of 0.015 mm thickness
Front Glazing 4mm Thick Toughened glass
Bottom Plate Aluminum Sheet
Gasket Gasket for flanges - Neoprene Rubber
    Solar Collector Absorber
Coating Selective black chrome – Nalsun
TIG welded copper-copper FIN & Tubes with black nickel chromium
Coating (solar selectively coated) Raised dia 12.5 mm
Insulation cover material Aluminum sheet
Header 99.9 % copper 1” , 22 SWG
Riser 99.9 % copper ½ “ 24 SWG
    Hot Water Tank Details
Tank Single or multiplicatioon of 1000 for higher capacity
Tank type Cylindrical – horizontal
Tank material (Inner) Stainless Steel SS 304 (Food Grade) - 0.9 mm
Insulating material for tank 48 Kg/Cu,metre density Rock wool slab for standard model
Cladding Aluminum Sheet
Beading & Grommet E P D M
Working Principle Thermosyphon
Electrical Back-up No need -     If need 2KVA up to 500 Litr.
Temperature of Hot Water 60 to 80 degree cel. On normal sunny days depending on the intensity of Sunshine.
Pressure pump model is available *Specifications are subject to change without prior notice".

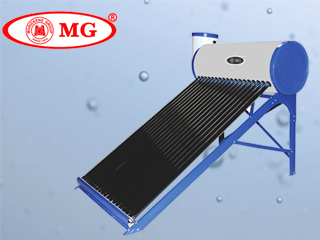

MG ETC SOLAR WATER HEATER TECHNICAL SPECIFICATION

MG Solar Water Heater ETC Model 100 150 200 250
Usage No. of person 2 to 3 3 to 4 4 to 5 5 to 6
Installation Area(sq. mt) 2.1 3.1 3.8 4.7
Water output temp. (° C) 40 ± 5 °C Under Normal Sunny Conditions
ETC tube Model: No. of Tubes 10 15 20 25
Material Glass 3.3
Coating Selective Absorptive Coating
Glass Sealing Silicon Rubber
Hot Water Tank material (Inner) Stainless Steel SS 304 (Food Grade) - 0.5 mm
Thermal Insulation PUF Insulation
Electric Heater (optional) 2.0 KW with Thermostat

MG FPC solar Water Heater Picture :-Click Here

MG ETC solar Water Heater Picture :-Click Here

Solar Water Heater Working Diagram :- click here

MG Solar water heater PDF Download : Click Here

Product Short Informative Videos:- Click here


Product Detailed Informative Videos:- Click here


Useful technical informative videos:- Click here





Some of our FPC Model Solar water heater installationClick Here

Electronic Products Watts Calculator :- Click Here

Flyline Solar Power Plant Installation Video of Murikens:-  Click Here

GOVT clients list of Murickens Group :-  Click Here

Flyline Solar Power Plant Working Animation :- Click Here



Murickes Brouchure :- Click Here
